How To Connect PS5 To TV? Best settings explained

How To Connect PS5 to TV Best settings explained

After buying a brand new PS5, you might be wondering how to connect PS5 to TV. We will see the step-by-step procedure on how you can accomplish this the right way. To connect PS5 to TV, follow the below steps:

  • Locate the HDMI Out Port on the rear side of your PS5.
  • Take the HDMI cable supplied with your PS5 and connect one end of the cable into the HDMI Out Port you located above.
  • Locate the HDMI Input Port on your TV.
  • Connect the other end of the HDMI cable to the HDMI Input Port you found above.
  • Finally, connect PS5 to an electrical outlet using the power cable.

The PS5 supports 4K video output at 120 fps. We will see in detail how to configure the settings correctly for your PS5 when you connect PS5 to TV for the first time so that you can get the best possible gameplay experience that PS5 has to offer. We will also get into the details of how you turn on the TV automatically when you start your PS5, which HDMI cables are recommended, and much more. First, let’s check in detail how to connect PlayStation 5 to TV.

How to connect PS5 to TV?

Follow the below steps to connect your PS5 to TV:

  • Turn your PS5 around and look at the back to find the HDMI port. HDMI is an acronym for High-Definition Multimedia Interface. It enables the digital transmission of uncompressed video and audio. The PS5 supports HDMI 2.1 specifications and it does support 4K 120 fps video output.

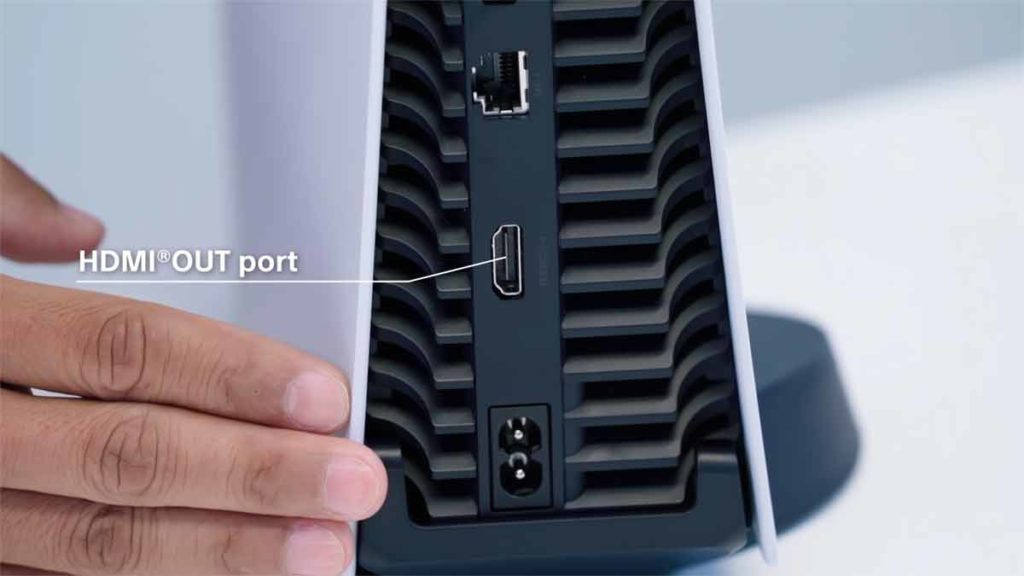

PS5 HDMI out port
  • You will find an HDMI cable included with your PS5. The HDMI cable supplied by Sony also supports HDMI 2.1 standards with a 48Gbps bandwidth to offer output 4K video at 120 FPS. But if you are using a new HDMI cable be sure to check that it is an HDMI 2.1 compliant cable. Now, connect one end of the cable to the HDMI port you just found on your console.
HDMI cable
  • Locate the HDMI port on your TV on the rear side, where all the other ports are located. For 4K and 120 FPS video, your TV should also support HDMI 2.1 and have a refresh rate of 120 HZ with 4K resolution or higher. Check the specification of your TV for details. Even if your TV only supports 1080p resolution, you can still enjoy gaming at that resolution.
  • Connect the other end of the HDMI cable to the HDMI port on your TV, and you are done. Your PlayStation 5 is now connected to your TV. Finally, connect both your TV and PS5 to an electrical outlet using the power cable. Turn on your PS5 and TV using the controller and enjoy.

How long is the included HDMI cable of PS5?

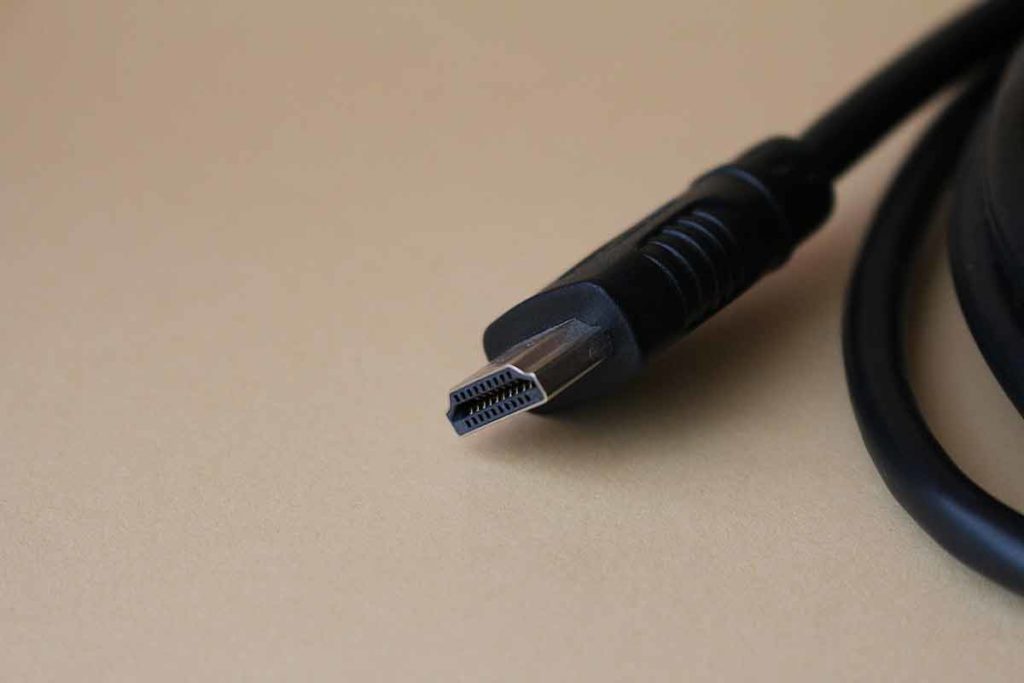

hdmi cable length

The length of the HDMI cable included with PS5 is 1.5 meters or 4.9 feet. The cable adheres to HDMI 2.1 specifications and is capable of a video output of 4k @ 120 FPS. It provides 48Gbps bandwidth and is also knows as the new Ultra High Speed HDMI Cable.

The provided cable is sufficient for 4K gaming at 120 frames per second. What if your TV is located a bit further from your PlayStation 5 and you require a longer cable? Read on have an excellent recommendation for you.

Which HDMI cable should you buy for the PlayStation 5?

You might require a longer or an additional HDMI cable to connect your PS5 to TV; in that case, always look for a cable that mentions that it is an ‘Ultra High Speed HDMI Cable’ and supports HDMI 2.1 standards so that it can output 4K video at 120 FPS. We recommend buying any of the following HDMI cables:

  • HDMI cable from Stouchi.
  • HDMI cable from Zeskit.

Both the HDMI cables are available in different lengths up to 3 meters or 10 feet option and are fully compatible with HDMI 2.1 standards and are an Ultra High Speed HDMI Cable. They can output 4K video at 120 frames per second so that you can enjoy your favorite games in the best manner possible. Buy the one which suits your need.

You can also verify your HDMI Cable’s authenticity, which you bought using the official App from the HDMI Licensing Administrator. To verify your HDMI cable, follow the below steps:

  • Download and install the official HDMI Cable Certification app from Apple’s App Store and Google’s Play Store.
  • Open the App on your phone, and it will open your phone’s camera.
  • Point your phone’s camera towards the QR code on the cable’s packaging.
  • The App will show a confirmation message after checking the authenticity of your HDMI cable.

How to Turn On TV automatically with your PlayStation 5?

To Turn on the TV automatically with your PS5, follow the below steps:

  • Go to Settings.
  • Then, select System.
  • Chose HDMI option
  • You will find two options when you select the option ‘Enable HDMI Device Link,’ and those are ‘Enable One-Touch Play’ and ‘Enable Power Off Link’
  • Select the option ‘Enable One-Touch Play‘ and turn it on; now, whenever you turn on your PS5, your TV (the connected device) will also turn on and switch its input to the PlayStation 5.

This handy feature saves you time when you quickly want to jump in action on your PS5.

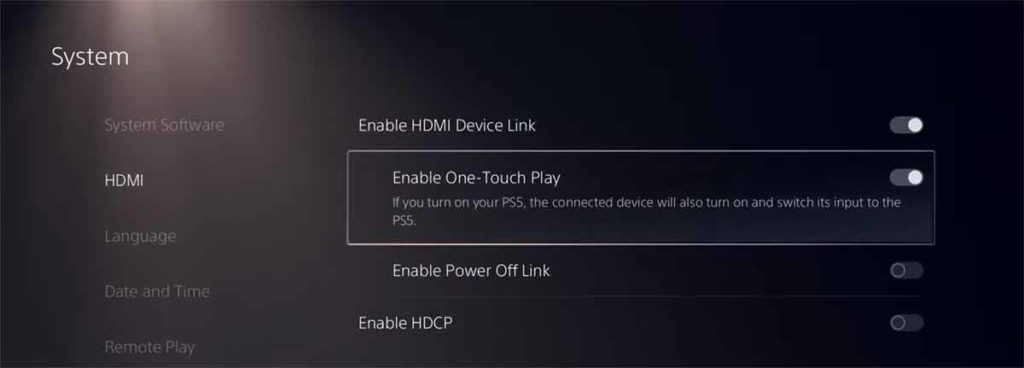

PS5 Enable One-Touch Play

If you want to stop your PS5 from turning on the TV, turn off the option for ‘Enable One-Touch Play.’ This way, PS5 won’t turn on your TV automatically, and you will have to start the TV manually.

There is also a second option called ‘Enable Power Off Link‘; by turning this option on, your PS5 will go into rest mode automatically when you turn off your TV. We recommend keeping this option off unless you specifically need this functionality.

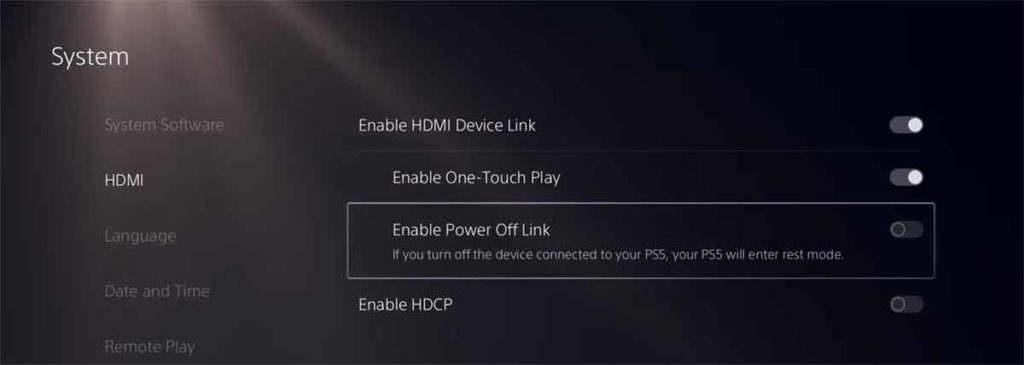

PS5 Enable Power Off link

Which to chose, Performance Mode or Resolution Mode in the PS5?

PlayStation 5 offers the following two modes as Game Presets:

  • Performance Mode: This mode favors the frames per second on your display by sacrificing some of the visual fidelity in the games and offers a much smoother experience.
  • Resolution Mode: This mode favors the resolution of the game over the frames per second. This means that the games may play at 4K resolution targeting the best possible image quality, but they might run at much slower frame rates of 30 FPS only.

The frames per second and resolution offered by the PS5 games vary between different game publishers. We recommend that you chose the option ‘Performance Mode‘ to have a much smoother experience with a higher frame rates while playing your favorite games. Please note that to take advantage of 120 frames per second, your TV should also support a 120Hz display and have an HDMI 2.1 input port, and you must be using HDMI 2.1 complaint cable as well.

Follow the below steps to enable Performance Mode in PS5:

  • Go to Settings.
  • Next, go to Saved Data and Game/App Settings.
  • Select Game Presets.
  • For the Performance Mode or Resolution Mode option, select the Performance Mode.

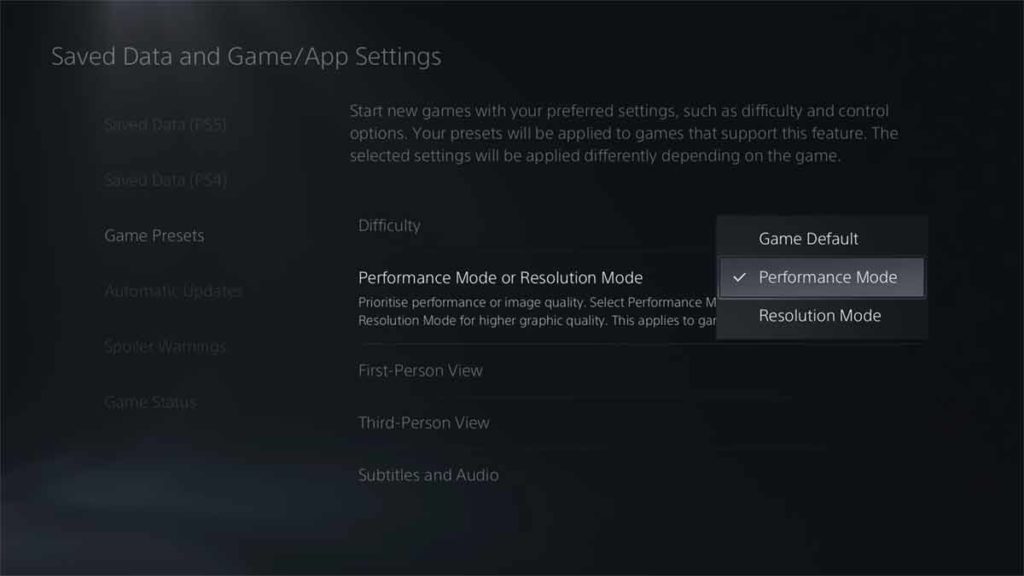

PS5 Enable Performance mode or resolution mode

Which PS5 games support 120 Frames Per Second?

After enabling the performance, you can take advantage of the higher frame rates. The PS5 will target the highest possible FPS for the game that supports 120 Frames Per Second. Some of the games that support 120 FPS on PS5 are:

  • Fortnite
  • Devil May Cry 5 Special Edition
  • Doom Eternal
  • Call of Duty: Black Ops Cold War
  • Call of Duty: Warzone
  • Rainbow Six Siege
  • Destiny 2
  • Dirt 5
  • Monster Boy and the Cursed Kingdom
  • The Nioh Collection (Nioh 1 and Nioh 2)
  • Ghostrunner
  • Tony Hawk’s Pro Skater 1+2
  • WRC 9
  • Borderlands 3
  • Rogue Company

Please note that to take advantage of 120 frames per second, you must have a 120Hz TV with HDMI 2.1 input port and HDMI 2.1 compliant cable connected to PS5.

Frequently Asked Questions on how to connect PS5 to TV?

How to prevent PS5 from turning on your TV?

You might be wondering why does your TV turns on when you turn on your PlayStation 5. It is because of the functionality called One-Touch Play, to stop PS5 from turning on the TV automatically, follow the below steps:
-Go to Settings.
-Then, Chose System.
-Select HDMI option
-You will find two options when you select the option ‘Enable HDMI Device Link.’
-Chose the option ‘Enable One-Touch Play‘ and turn it off; now, PS5 won’t turn on your TV automatically when you turn on PS5.

Can you use any HDMI cable with PS5?

You might be having an old HDMI lying around your house which you got with your PS4 or with any of the other electronic devices. You might be wondering can you use an HDMI cable with your PS5 such as HDMI 1.4 cable? Then you will be pleased to know that the connector heads of the HDMI cables haven’t changed and you can still use any HDMI cable with your PS5. The point to note here is that you can get 4K @ 120 FPS video output with an HDMI 2.1 cable only and not with lower versions of HDMI cables such as HDMI 1.4 cable.

Also, If you would like to connect your PlayStation 5 to a monitor, we have got you covered. You can connect your PS5 using an HDMI port or a Display port. Check out our complete guide at: How To Connect PS5 To Monitor? Using HDMI or a Display Port

Let us know in the comments below how have you set up your PS5 with your TV?
